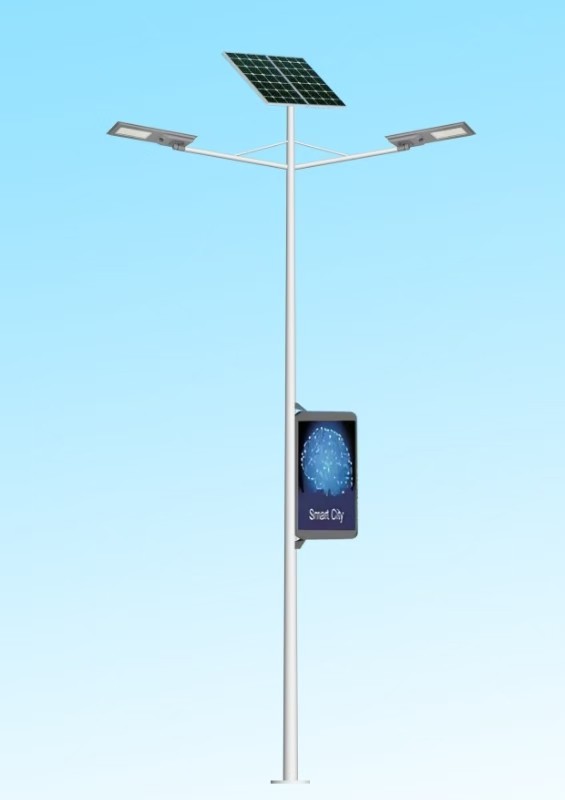

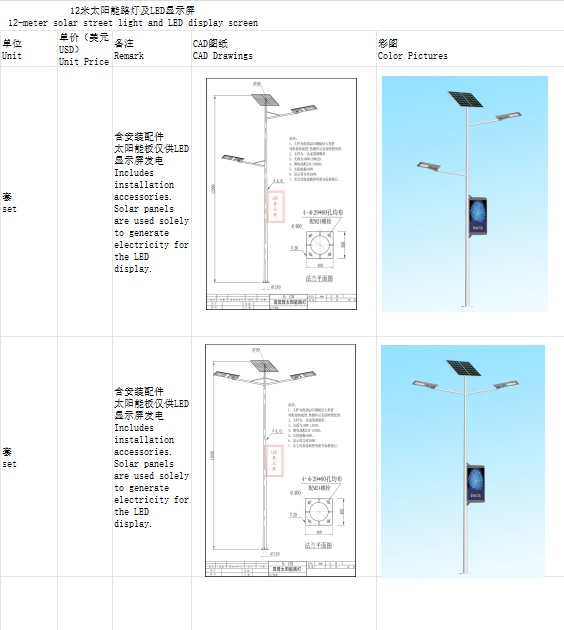

12-meter smart street light CAD drawings: Providing a solar off-grid power supply solution for outdoor LED advertising screens

Customer requirements: 300 sets of 12-meter solar streetlights and outdoor advertising light boxes with display screens

Our solution:

1. Lamp Post: Made of high-quality Q235 steel, hot-dip galvanized inside and out, with electrostatic powder coating on the surface.

2. Luminaire: Made of one-piece die-cast aluminum.

3. Light Source: 100W/150W LED.

4. Lithium Battery: 24V/100AH.

5. Solar Panel: 400W.

6. Display Screen: Display screen power is 200W.

7. Flange: 400mm x 400mm, equipped with 4 - Φ20 x 600 anchor bolts.
