100W Wind Energy Turbine FLS Series

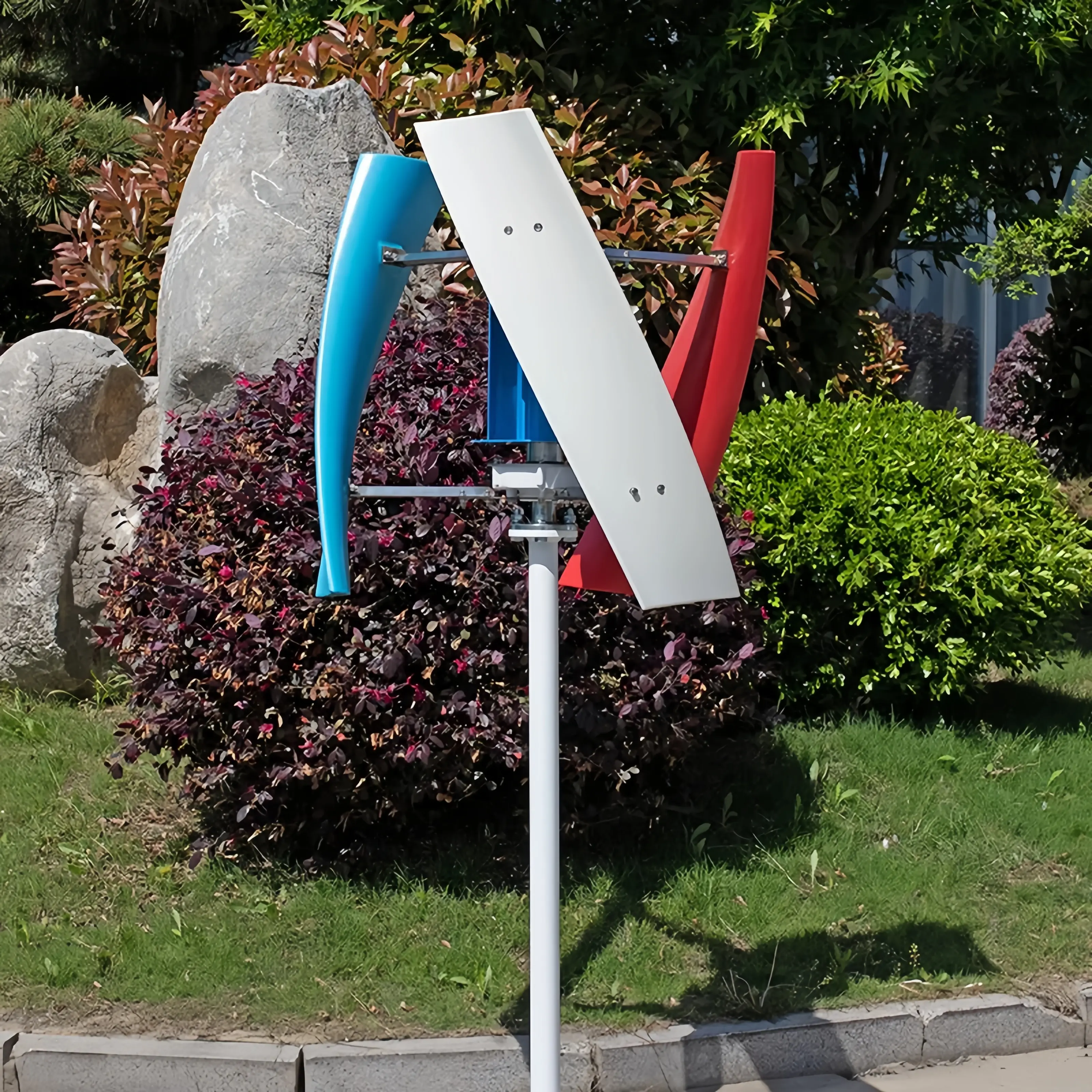

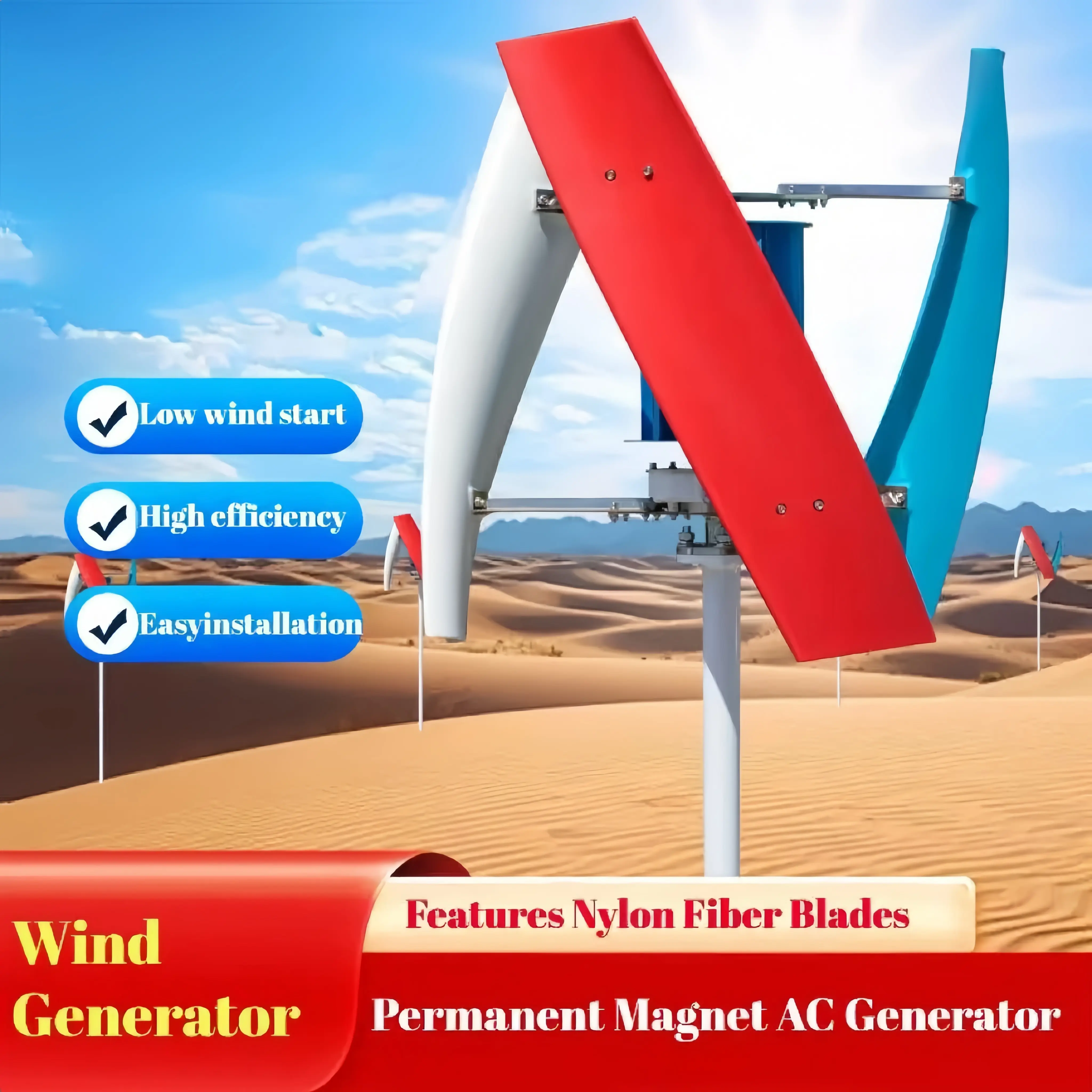

Our red vertical axis wind turbine is a cutting-edge renewable energy solution designed to convert natural wind into usable electricity. Featuring a high-purity copper core and robust construction, it offers exceptional power generation efficiency while operating smoothly even in gentle breezes. Perfect for both residential and commercial applications, it provides a sustainable alternative to traditional grid power.

Project	FLS-100	FLS-200	FLS-300	FLS-400
Rated Power	100W	200W	300W	400W
Maximum Power	130W	220W	310W	410W
Rated Voltage (V)	24
Start-up Wind Speed	2.0m/s	2.0m/s	2.0m/s	2.0m/s
Rated Wind Speed	10m/s	11.5m/s	13m/s	13m/s
Safe Wind Speed	55m/s	55m/s	50m/s	50m/s
Main Unit Net Weight	6kg	6.2kg	6.5kg	6.8kg
Rotor Diameter	1.25m	1.25m	1.25m	1.25m
Number of blades	3/5 Slices	3/5 Slices	3/5 Slices	3/5 Slices
Blade Material	High-Strength Nylon Composite	High-Strength Nylon Composite	High-Strength Nylon Composite	High-Strength Nylon Composite
Generator Type	Three-Phase AC Permanent Magnet Generator	Three-Phase AC Permanent Magnet Generator	Three-Phase AC Permanent Magnet Generator	Three-Phase AC Permanent Magnet Generator
Magnet Material	Neodymium-Iron-Boron	Neodymium-Iron-Boron	Neodymium-Iron-Boron	Neodymium-Iron-Boron
Generator Housing Material	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum
Braking Method	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Directional Adjustment	Automatic Windward Adjustment	Automatic Windward Adjustment	Automatic Windward Adjustment	Automatic Windward Adjustment

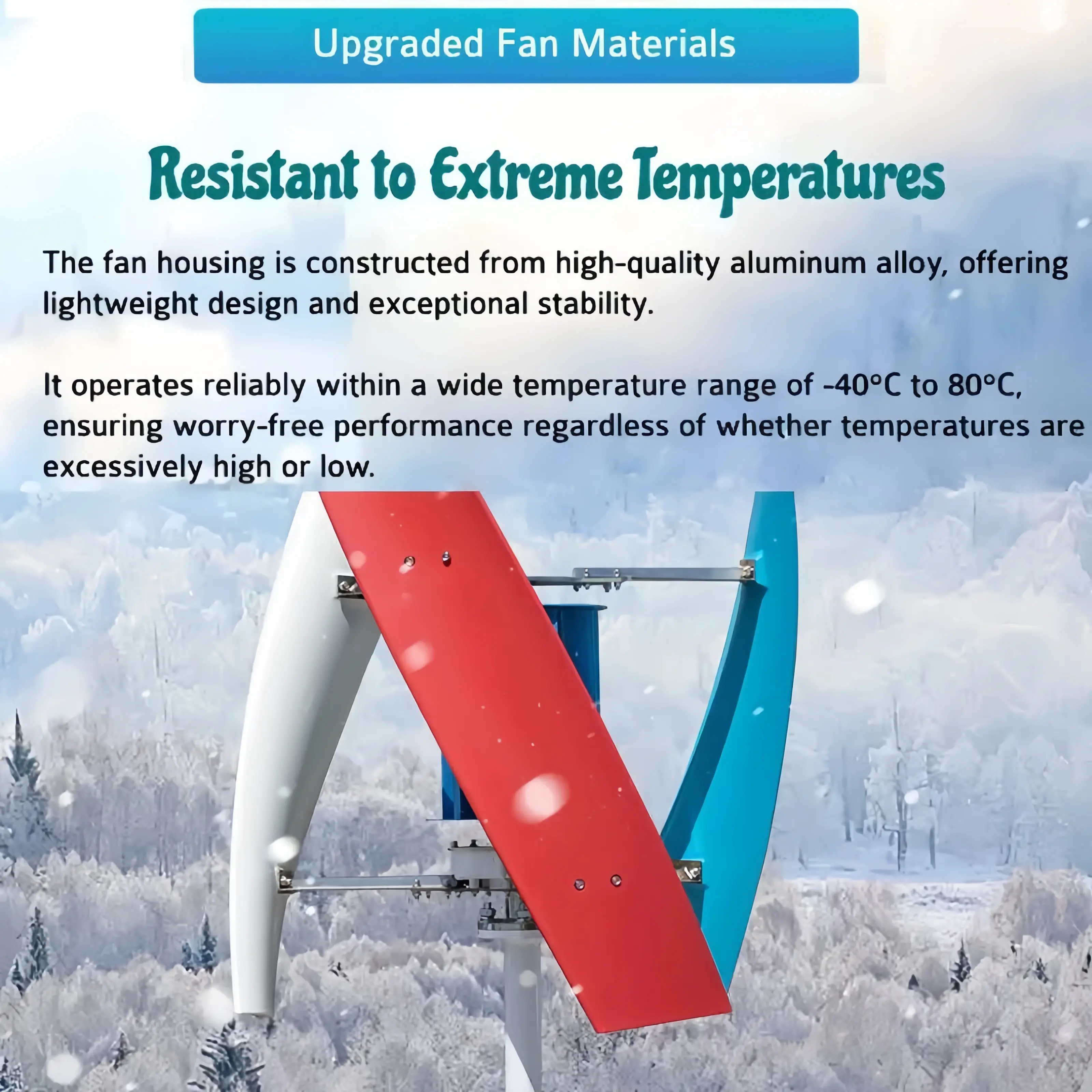

Operating Temperature	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
