The following parameters are for reference only.Specific paramenters can be customized according to actual needs.

Combined Light Technical parameters

Due to the wide variety of product types, production is carried out based on the buyer's drawings and designs.The following parameters are for reference only.

1.Optical Performance Parameters

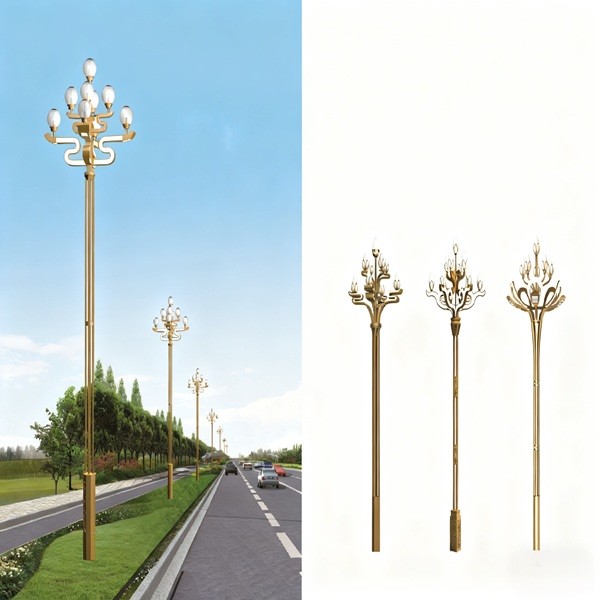

Light Source Combination:Configured based on scenarios.Common combinations include‘main light +auxiliary light’,‘floodlight+spot light’,and 'illumination light +ambient light’。Examples include courtyard combined light(15W main light + two 5W spot lights) and commercial combined lights (30W floodlight +four 10W contour lights)

Power Range:Single light module ranges from 3W to 8W,and the total power of the entire light is 10W to 200W (10-50W for household combined lights,50-200W for commercial/outdoor combined lights).

Luminous Flux Color Temperature:Main lights (flood type ) have a luminous flux of 300-3000lm and a color temperature of 3000-6000K,meeting basic lighting needs.Auxiliary lights(spot lights/ambient lights) have a luminous flux of 100-800lm and a color temperature of 2700K-4000K,used for key lighting or atmosphere creation;some support RGB color adjustment.

Beam Angle Matching:Main lights have a beam angle of 60°-120° for wide coverage.Auxiliary lights have a beam angle of 15°-45° for focused lighting (e.g.,highlighting greenery or wall decorations).

Color Rendering Index (Ra):Ra of main lights is ≥ 80,and Ra of auxiliary lights is ≥ 85,which restores the true colors of objects and is suitable for commercial display and home decoration scenarios.

2.Structural Installation Parameters

Luminaire Structure:Available in integrated design (multiple light sources integrated into one luminaire,such as ceiling-mounted combined lights) and modular design (light sources detachable/assemblable).Materials are mostly aluminum alloy (rust-proof)+PC lampshade (uniform light transimission)

Dimension Specifications:Small combined lights have a diameter of 20-40cm and a thickness of 5-12cm.Large combined lights are 60-150cm in length and 20-50cm in width,suitable for commercia spaces.The spacing between each light source(eg.,15-30cm between spot lights) must be marked to ensure no lighting dead ends.

Installation Method:Pole-mounted type requires pre-designed embedded foundations and cable trench excavation based on drawings,and crane lifng is needed for installation.

IP Rating for LED LED Light Sources:Outdoor combined lights have an IP rating of IP65,providing protection against heavy rain and dust.

3.Electrica Control Parameters

Input Voltage:For outdoor use,AC220V or DC12V/24V is optional(low voltage is sasfe and suitable for humid environments).The transformer power must be marked(eg,a total power of 50w matches a 60w transformer ).The specific voltage is adjusted according to the customer's loca conditions.

Control Method:Supports separate control+total control(independent coontrol of the on/off/brightness of a specific ligght group,or unified adjtment of the entire light).It is compatible with remote control and app control (for high-end models);some are equipped with light control/time control (for automatic on/off of outdoor combined lights).

Dimming color Tuning:Main lights support 0-100% brightness adjtment.Auxiliary lights allow independent color temperature tuning (eg.,2700K warm yellow to 5000K hours,and driving power supplies have a service life of ≥ 30,000 hours.The structural service life of LED light sources is ≥ 5 years (for outdoor use),and the service life of light poles is approximately 30 years.

4.Scenario Adaptation Additional Parameters

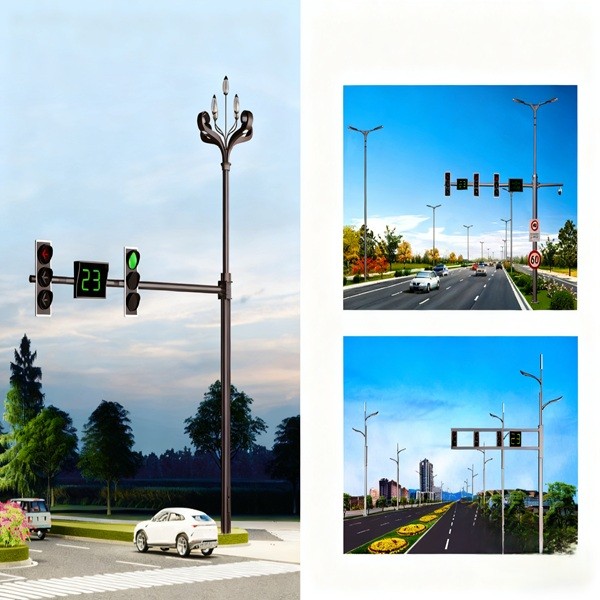

Scenario Classification:Classified by application,including road combined lights,commercial combined lights,outdoor combined lights,and industrial combined lights.

Additiona Functions:Somr are equipped with emergency lighting(main lights switch to emergency mode when power is off,with a battery life of 2-4 hours),wireless charging,and intelligent linkage.

Weather Resistance (Outdoor Type ):Operating temperature ranges from-30℃ to 60℃.It is UV-resistant (lampshades show no yellowing for 5 years).Meta components undergo galvanization/powder coating for corrosion resistance;salt spray resistance is required for coastal areas.
