The following parameters are for reference only.Specific parameters can br customized according to actual needs.

Smart street Light Technical Parameters

1.LED Lighting Parameters

Light Source Type:All use LED,the standard choice for smart street lighting due to its high efficiency and long lifespan.

Power Range:50w-300w,selected based on road width—higher power for wider roads to ensure sufficient illumination coveerage.

Luminous Flux:1500lm-18000lm,with higher power corresponding to higher luminous flux.It must meet road lighting standards(eg.average illuminance ≥ 20lux for main roads).

Color Temperature:3000K-5700K

3000K(warm yellow) is optional for scenic areas to create a pleasant atmophere;

4000k(natural white) is commonly used for regular roads,balancing clarity and eye comfoet.

Color Rendering Index (Ra): ≥ 70 is sufficient for basic;Ra ≥ 80 is recommended for commercial areas or scenic spots to restore the true colors of the surrounding environment.

Dimming Function:Supports 0-100% brightness adjustment.For example,it automatically reduces to 50% power late at night,achieving over 30% energy savings.

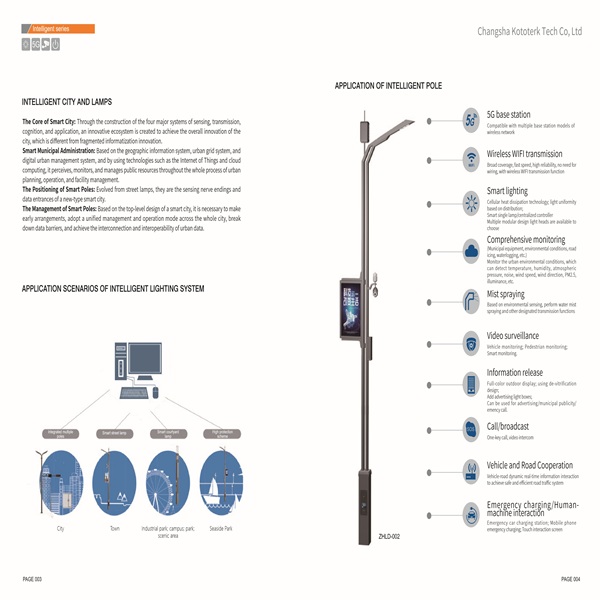

2.Smart Module Parameters(Core of Intelligence)

Optional Modules:Configured based on needs;common combinations include:

Sensing Modules:Human motion sensing(automatically turns on lights when pedestrianas/vehicles are detected) and environmrntal monitoring (tracks PM2.5,temperature,humidity ,and noise levels).

Functional Modules:5G/4G micro-base station eith WIFI (expands communication coverage),charging piles(for mobie phones and electric vehicles),and video surveillance(for security purpose).

Control Methods:Supports remote platform control （via computer/mobile APP）and automatic linkage control(e.g.,automatically brightens when vehicles are detected).

3.LED Advertising Light Box (Additional Function)

The size of the light box is customized according to the proportional ratio of the light pole height.

Resolution：P2.5,ensuring clear display of advertising content even at close range.

4.Power Supply & Protection Parameters(Safety & Stability)

Input Voltage:Stamdard AC220V (can be upgraded according to local voltage requirements). Some models support DC12V/24V, which can be paired with solar power supply for areas without grid access.

Energy Consumption Index: Standbt power consumption ≤1W （for low-power operation of smart modules）.

Supports complementary solar-power supply,which is energy-efficient and eco-friendly.

Protection Class: IP65 for the lamp body (resistant to heavy rain and dust)；IP54 for the control box (splash-proof).It adapts to harsh envirinments with temperatures ranging from ﹣30℃ to 70℃.

Wind Resistance Rating:≥Grade 12. Light poles are mostly made of Q235 steel with a wall thickness of 4-8mm, ensuring they remain stable and do not topple under strong winds.
