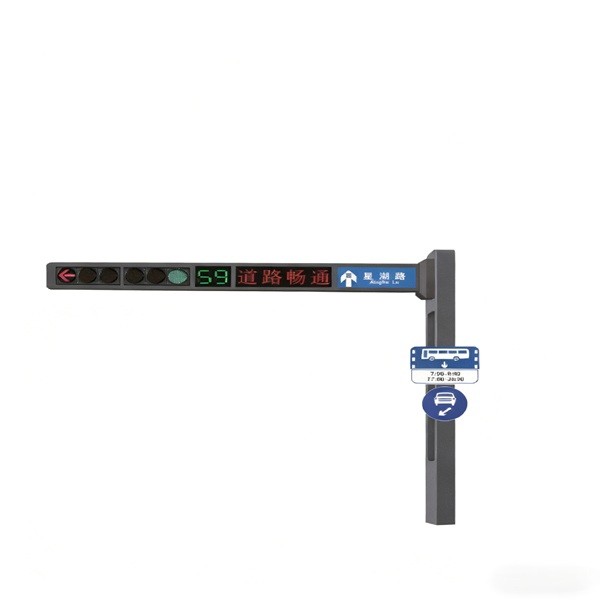

Traffic Signal

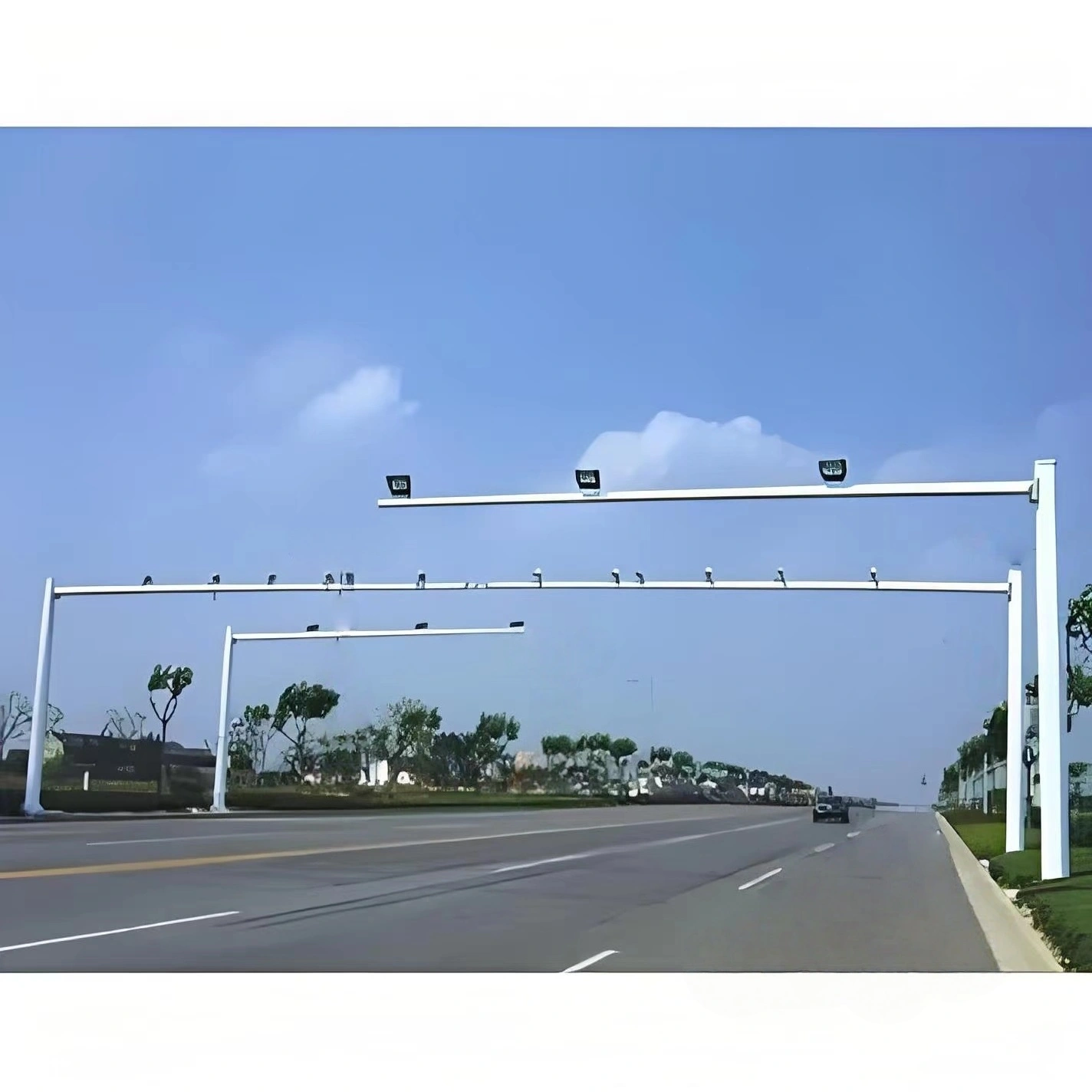

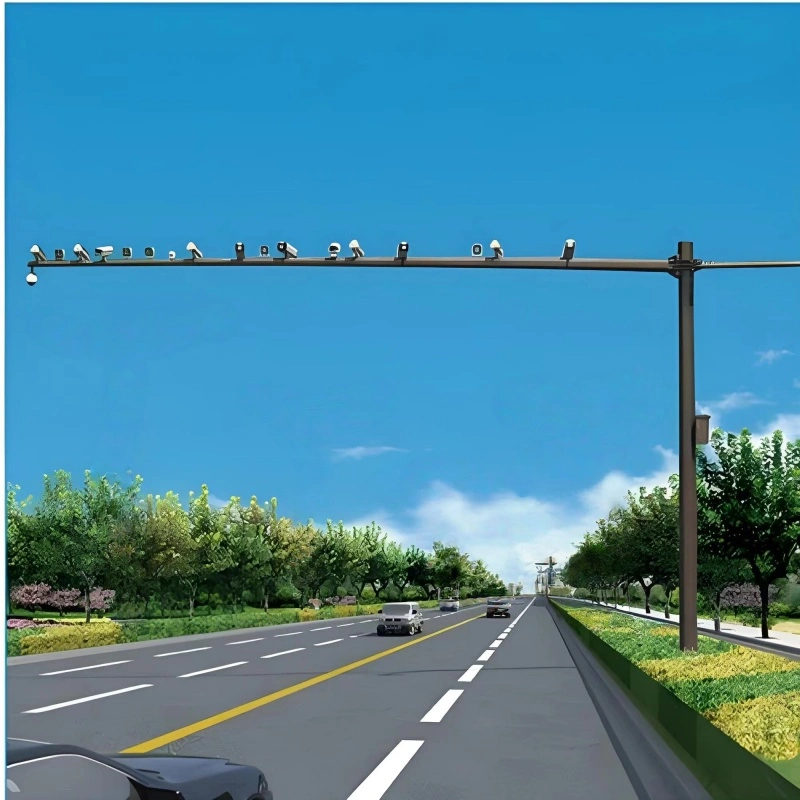

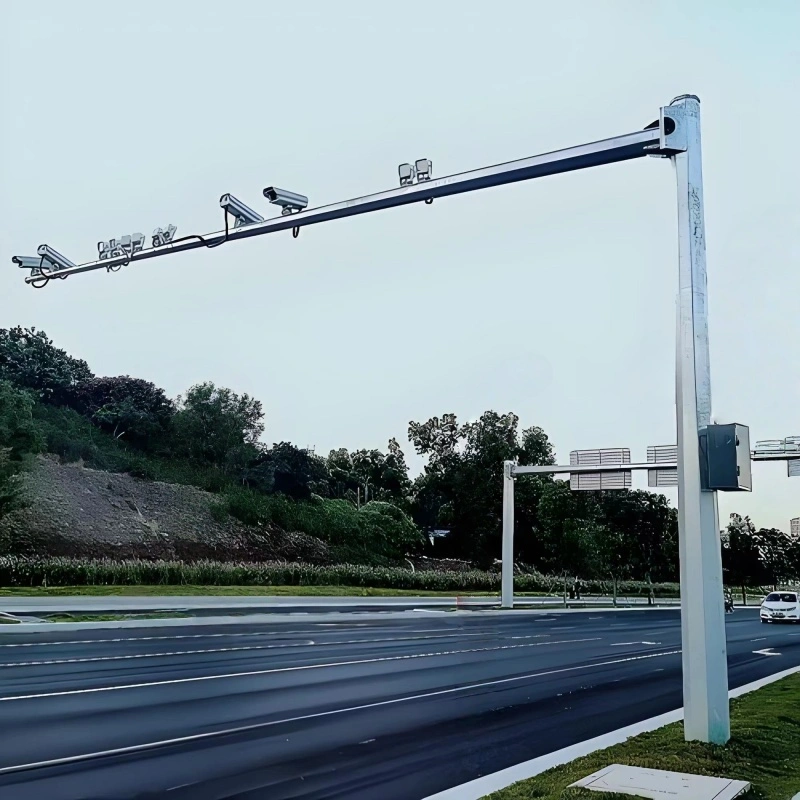

At Kototerk, we design and manufacture custom traffic monitoring poles that form the backbone of modern urban and highway security systems. Our structures are engineered to support a full range of surveillance equipment—including HD cameras, ANPR systems, fill lights, and environmental sensors—while meeting global safety and durability standards.
Technical Overview
Our standard poles support equipment loads of 5–20kN and are engineered to resist wind speeds up to 120km/h (adjustable per local climate). Whether for urban intersections, highway toll gates, or industrial park perimeters, Kototerk’s monitoring poles provide a dependable foundation for your surveillance network.
Parameter
Category
Core Parameter
Optional
Configuration / Notes
Basic Information
Product
Name
Traffic
Monitoring Pole / Electronic Police Pole / Bayonet Monitoring Pole / Skynet
Monitoring Pole
Application Scenario
Security
monitoring for urban roads, highways, industrial parks, parking lots, etc.
Design Standard
Compliant
with GB 50017, GB 5768 and other relevant specifications
Structural Material
Main
Material
Q235B/Q355B
Carbon Structural Steel / Low Alloy High Strength Steel
Surface Treatment
Hot-dip
Galvanizing (zinc coating ≥85μm) + Outdoor Fluorocarbon Painting / Pure
Hot-dip Galvanizing
Corrosion Resistance Life
20-30
years (outdoor weather resistance)
Structural Dimensions
Pole
Type
Single
Cantilever / Double Cantilever / Octagonal / Conical / Cylindrical
Height
4m
/ 5m / 6m / 8m / 10m (customizable)
Arm Length
1m-16m
(customizable)
Pole Diameter Spec
Octagonal:
150×150mm~300×200mm; Conical: φ140~φ260mm
Wall Thickness
4mm
/ 5mm / 6mm / 8mm
Load Capacity
Design
Wind Load
0.5~0.8kN/m²
(adjustable per project location)
Equipment Load
5~20kN
(supports cameras, fill lights, radars, etc.)
Seismic Grade
Compliant
with local seismic fortification intensity (Grade 7~9)
Functional Configuration
Auxiliary
Facilities
Safety
Guardrail, Equipment Cabinet, Lightning Rod, Grounding Terminal
Electrical Interface
Pre-reserved
cable channels, waterproof junction boxes, power/network interfaces
Optional Functions
Multi-device
mounting positions, solar power interface, environmental monitoring sensor
mounting points
Installation & Transportation
Installation
Method
Flange
Foundation Anchoring / Embedded Installation
Transportation Method
Bulk
Transportation (for sea transport)
Installation Period
1~3 days per set (depending on site conditions)
Warranty & Service
Warranty
Period
1~3
years (lifetime warranty for main structure)
Service Content
Overseas
remote video survey, detailed engineering design, manufacturing &
production, sea freight transportation, remote installation guidance, and
remote after-sales support.
Key Advantages of Kototerk Monitoring Poles:
Superior Structural Strength: Crafted from Q235B/Q355B high-strength steel, our poles offer exceptional rigidity and load-bearing capacity, ensuring stability even in high-wind and seismic zones.
Long-Term Corrosion Resistance: Our proprietary hot-dip galvanizing + fluorocarbon painting process delivers a zinc coating of ≥85μm, providing 20–30 years of reliable outdoor protection against rust, UV rays, and salt spray.
Flexible Customization: Available in octagonal, conical, and cylindrical profiles, with heights from 4m to 10m and arm lengths up to 6m. We tailor every dimension, load capacity, and finish to match your project’s exact requirements.
Smart Integration Ready: Pre-configured with internal cable conduits, waterproof junction boxes, and equipment mounting brackets, our poles simplify the installation of CCTV, AI analytics, and 5G communication systems.
Global Compliance: All designs adhere to international structural and safety standards, making them ideal for projects across Europe, the Middle East, Africa, and Southeast Asia.
Partner with Kototerk for durable, customizable traffic monitoring solutions that keep your infrastructure safe and connected. Contact our engineering team today for a free quote and technical consultation.
