Core Components of PV Energy Storage Systems: Key Roles in Household and Industrial Scenarios

A PV energy storage system is the core carrier for realizing solar energy's "self-consumption and surplus electricity storage". Although household and industrial scenarios differ significantly in scale and power, the functional logic of their core components is highly consistent, jointly supporting the storage, conversion, and safe use of energy.

1. Energy Storage Batteries: The "Core Warehouse" for Energy Storage

Energy storage batteries are the energy carriers of the system, responsible for storing electricity generated by solar panels.

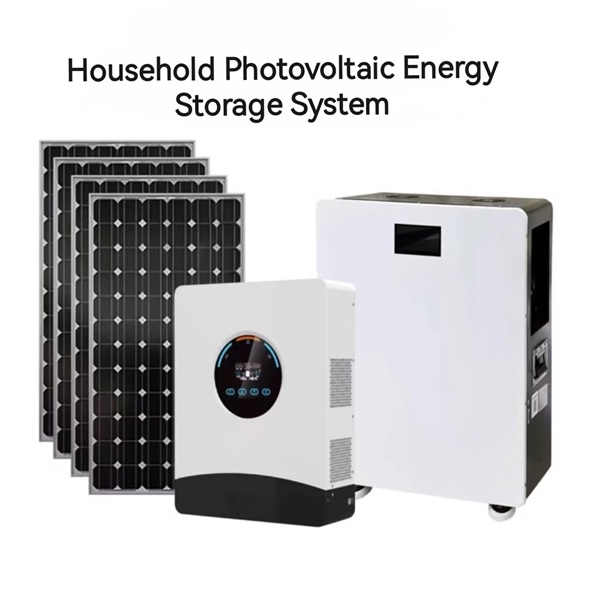

In household scenarios, lithium batteries (such as lithium iron phosphate batteries) are mostly used. They are small in size and high in safety, meeting the storage needs of daily electricity use (lighting, home appliances) with a capacity usually ranging from 5 to 20 kWh.

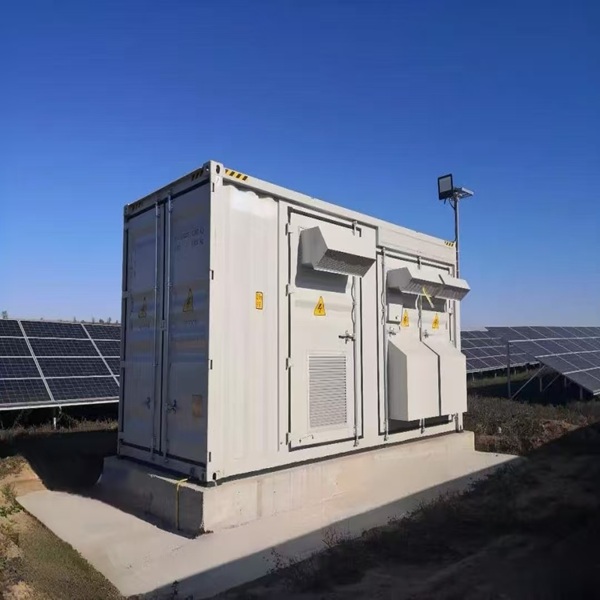

Industrial scenarios require large-capacity storage, often adopting lithium battery packs or flow batteries with a capacity of hundreds to thousands of kWh, adapting to the continuous power demand of factory production lines and large-scale equipment.

Core role: Balance the "intermittency" of photovoltaic power generation, store surplus electricity during the day, and release it at night or on rainy days to avoid energy waste.

2. Inverters/PCS Energy Storage Converters: The "Bridge" for Energy Conversion

As key components connecting solar panels, batteries, and electrical equipment, their core function is the conversion of electrical energy forms.

In household scenarios, inverters convert the direct current (DC) from solar panels into alternating current (AC) usable by home appliances, while realizing the current conversion for battery charging and discharging.

PCS converters in industrial scenarios have higher power, enabling bidirectional conversion between DC and high-voltage AC to adapt to industrial high-voltage power supply systems.

Core role: Resolve the mismatch between "power generation form" and "power demand", ensuring stable access of electrical energy to loads or the power grid.

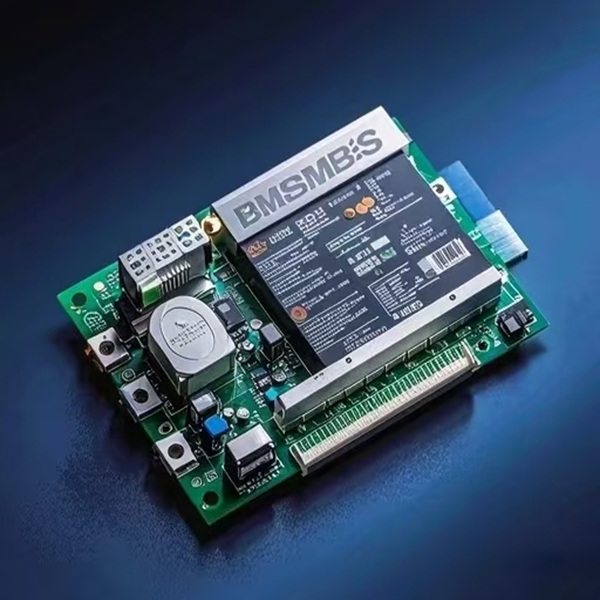

3. BMS (Battery Management System): The "Guardian" of Battery Safety

The BMS is an intelligent control system for energy storage batteries, monitoring the battery status throughout the process.

In household scenarios, it real-time monitors the battery's voltage, temperature, and state of charge (SOC), preventing overcharging and over-discharging, and extending the battery life (the service life of household batteries is usually 8-10 years).

In industrial scenarios, in addition to basic monitoring, it also needs to coordinate the charging and discharging balance of multiple battery packs, cope with high-current impacts, and ensure the safe operation of battery packs.

Core role: Avoid risks such as battery thermal runaway and capacity degradation, serving as the core guarantee for the safe and stable operation of the system.

4. Monitoring and Control System: The "Brain" of System Operation

Composed of hardware equipment and software platforms, it is responsible for coordinating the operation of the entire energy storage system.

Household scenarios mostly use simple APPs or control panels, allowing users to real-time check power generation, storage capacity, and power consumption, and manually or automatically set charging and discharging strategies (such as peak-valley electricity price arbitrage).

Industrial scenarios require professional monitoring platforms that support the linkage of multiple energy storage systems, connect to power grid dispatching, and realize complex functions such as peak shaving and valley filling, and emergency power supply.

Core role: Achieve intelligent operation of the system, dynamically adjust according to power demand and power grid status, and improve energy utilization efficiency.
