The following parameters are for reference only. Specific parameters can be customized according to actual needs.

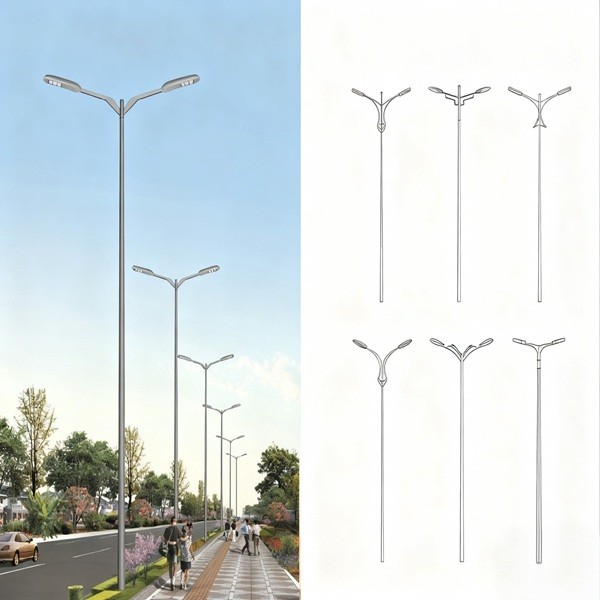

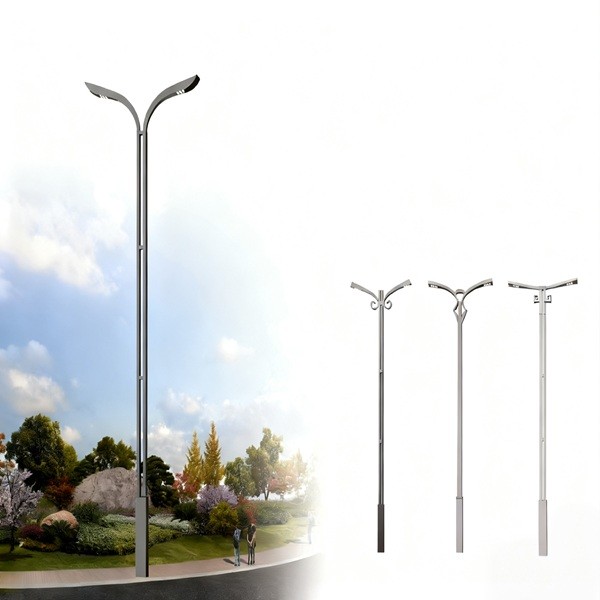

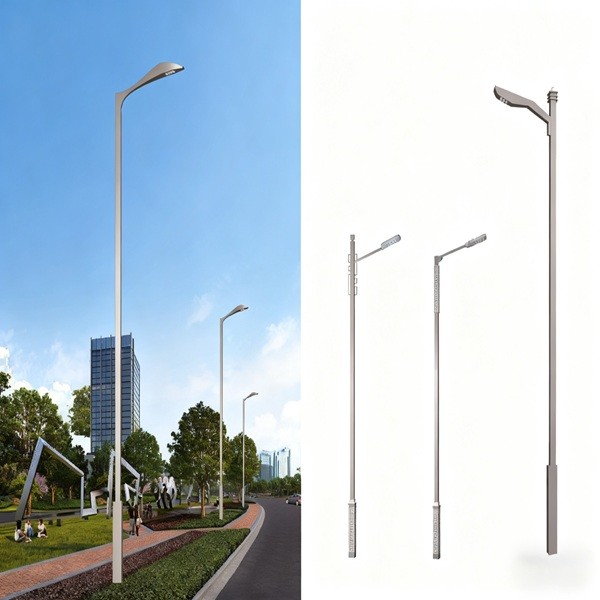

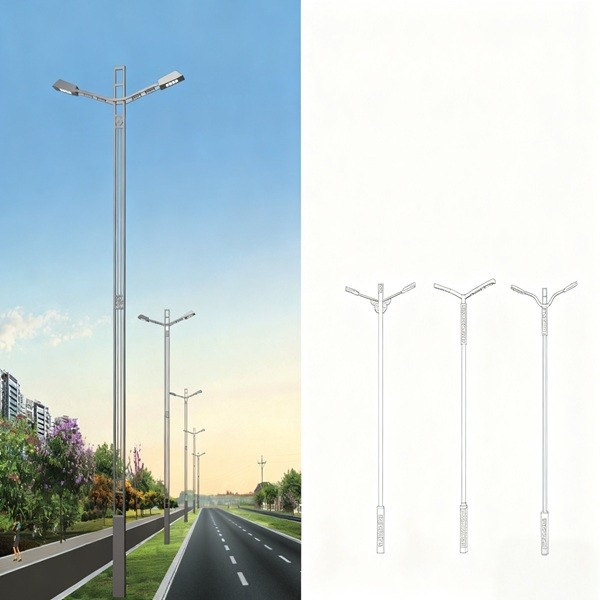

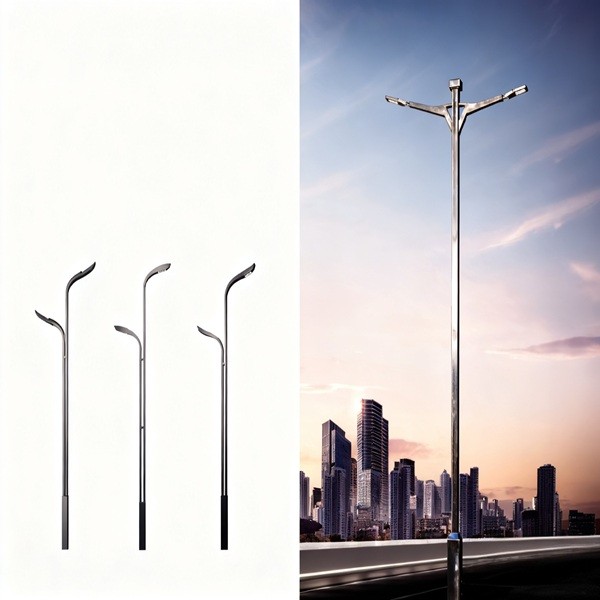

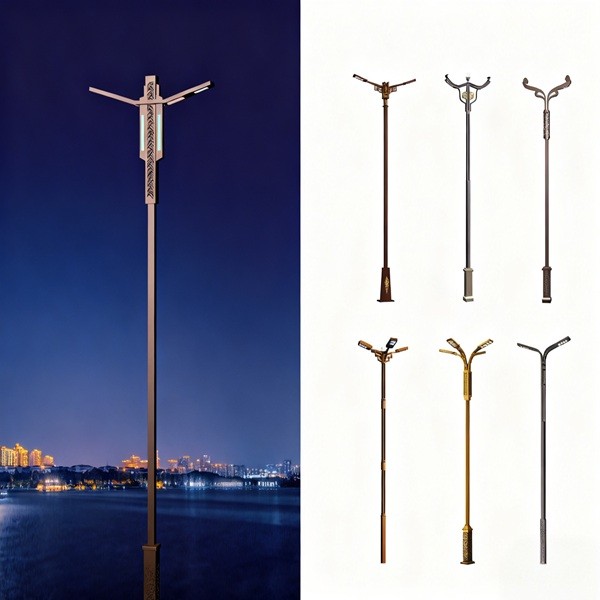

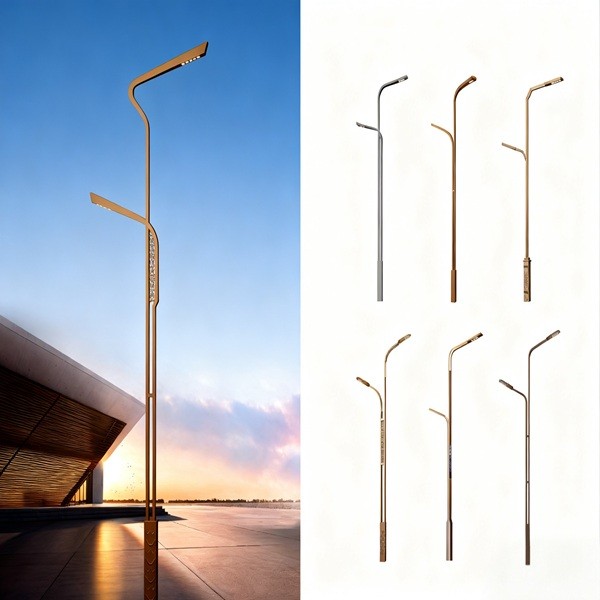

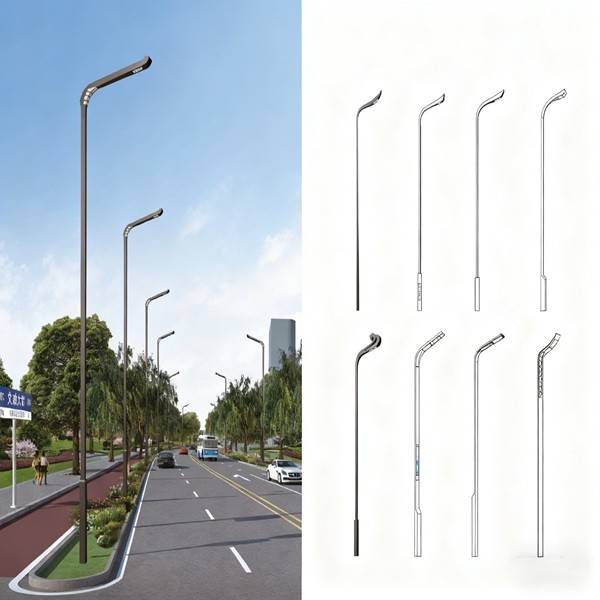

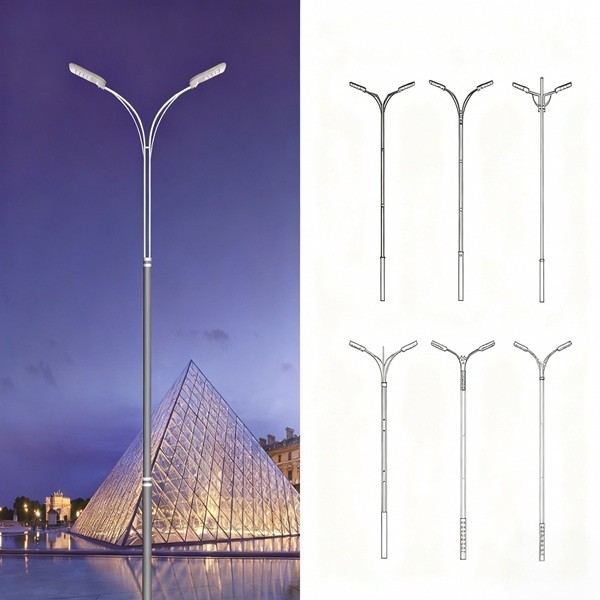

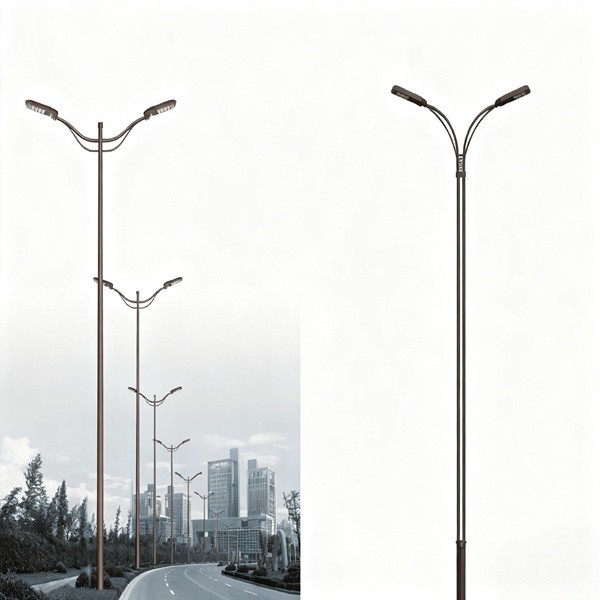

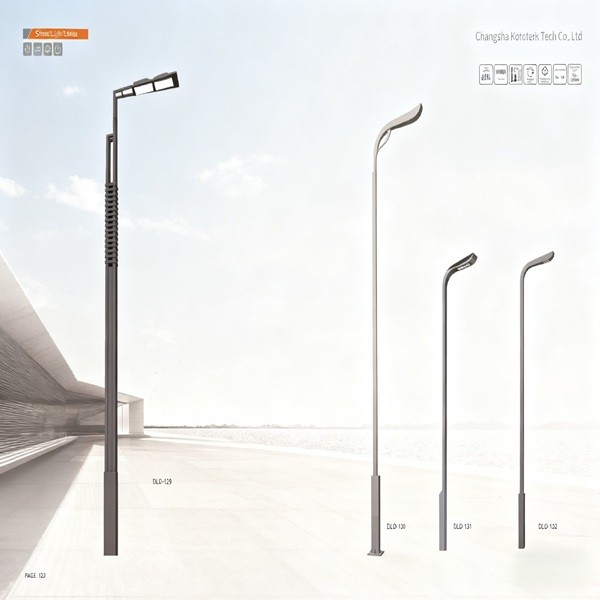

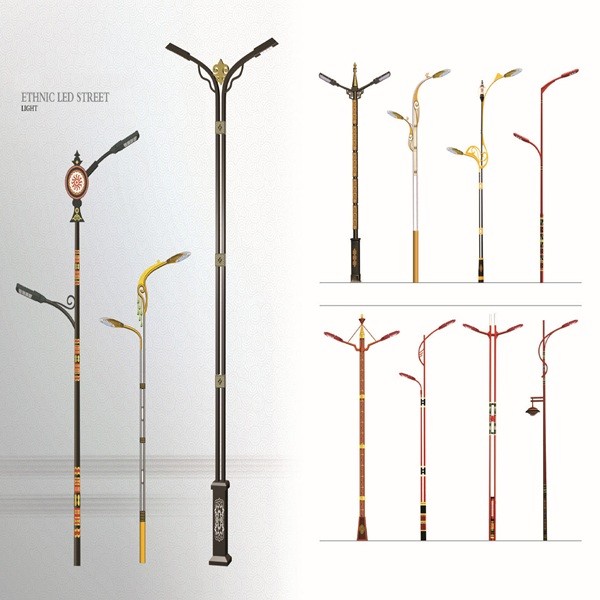

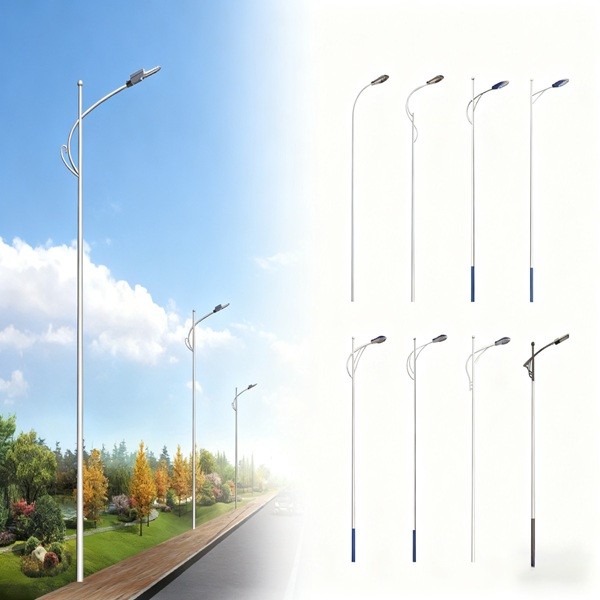

1.Road Lighting Pole Specifications

Pole Height: 5-12 Meters

Specifications for 5-8m Poles:

Upper Diameter: 60 cm

Lower Diameter: 170 cm

Thickness: 3.2 mm

Flange: 16 mm

Specifications for 9-12m Poles:

Upper Diameter: 70 cm

Lower Diameter: 205 cm

Thickness: 4 mm

Flange: 20 mm

Note: After all light poles are manufactured, they first undergo polishing and grinding, then go through hot-dip galvanization for anti-corrosion treatment. After a second round of polishing, they are spray-coated with plastic powder. Finally, trademarks are affixed once the poles cool down.

Packaging Method for Poles: First wrapped with bubble wrap, then covered with cotton gauze or green wool blanket.

2.Lamp Matching Reference

Light Source: 30W-300W LED Light Source

Matching Recommendations:

Pole Height (H) 5-6m: Matched with 30W LED Light Source

Pole Height (H) 7-8m: Matched with 60W-80W LED Light Source

Pole Height (H) 9-10m: Matched with 100W-150W LED Light Source

Pole Height (H) 10-12m: Matched with 150W-200W LED Light Source

Note:

Lamp Housing: Die-cast aluminum, waterproof (IP65 Rating)

Housing Material: Die-Cast Aluminum

Surface Treatment: Electrostatic Spraying (UV-Resistant)

Protection Rating: IP65 (Complete Dustproof, Protection Against Powerful Water Jets)

Operating Temperature: -40°C ~ +60°C

3.LED Light Source Parameters

LED Chip Brands: Cree (USA), BridgeLux (USA), Epistar (Taiwan, China), Samsung (South Korea)

Control Power Supply: Mean Well (Taiwan, China), Moso (Guangdong, China)

Luminous Efficacy: ≥ 160 LM/W

Color Rendering Index (CRI): ≥ 70

Color Temperature: Optional (3000K Warm White, 4000K Natural White, 5000K/5700K Cool White)

Expected Lifespan: 50,000 Hours

Control Modes: Time Control, APP Mobile Control

Mounting Diameter: 60-100mm (Diameter)

Color: Matched with the main pole color or customized (design determined by the customer)

4.Electrical Parameters

Input Voltage: AC 100-277V / 200-480V (Wide Voltage, Globally Compatible)

Power Factor: > 0.95

Total Harmonic Distortion (THD): < 10%

5.Optical & Physical Parameters

Beam Angle: 120° x 60° (or customized based on actual light distribution needs)

Luminaire Efficiency: > 95%

Net Weight: Approx. 6.5 kg

6. Packaging Information

Quantity per Carton: 1 PC

Gross Weight/Net Weight: 7.5 kg / 6.5 kg

Outer Carton Dimensions: 800mm x 300mm x 250mm

Packaging Material: Inner lining with foam; outer carton made of high-strength corrugated paper.

7.Core Advantages

Ultra-High Energy Efficiency: Up to 200 LM/W, saving over 60% energy compared to traditional high-pressure sodium lamps.

Superior Optical Design: Special lens design ensures uniform light distribution and no glare, enhancing road safety.

All-Weather Protection: IP65 protection rating (dustproof & waterproof); the robust housing resists strong winds, corrosion, and impact.

Control Method:Computer Clock Control

C

8. Recommended Application Scenarios

Urban/Rural Roads , Streets

Residential Communities , Gated Villages

Industrial Parks , Logistics Zones

Parks, Plazas , Recreational Areas

Highway Service Areas , Rural Townships

Township and Village
