LED Illuminated Road Sign Pole
Core Specification
| Parameter Category | Core Parameter | Optional Configuration / Notes |
| Basic Info | Product Name | LED Illuminated Traffic Sign Pole / Smart Traffic Sign Pole |
| Application | Urban arterial roads, highway interchanges, low-visibility night sections | |
| Design Standard | Compliant with GB 5768 and outdoor lighting specifications | |
| Structural Material | Main Material | Q235B/Q355B Carbon Structural Steel / Low Alloy High Strength Steel |
| Surface Treatment | Hot-dip Galvanizing (zinc coating ≥85μm) + Fluorocarbon Painting | |
| Corrosion Life | 20-30 years | |
| Dimensions | Pole Type | Octagonal / Conical / Cylindrical |
| Height | 4m / 5m / 6m / 8m (customizable) | |
| Arm Length | 1m / 1.5m / 2m (customizable) | |
| Pole Spec | Octagonal: 150×150mm~250×150mm, wall thickness 4-6mm | |
| LED Sign Spec | Light Source | High-brightness SMD/COB LED |
| Illumination Type | Back-lit / Face-lit | |
| IP Rating | IP65 (waterproof & dustproof) | |
| Voltage | DC 12V/24V or AC 220V (optional) | |
| Brightness | ≥300cd/m², visible ≥500m at night | |
| Load & Safety | Wind Load | 0.5~0.8kN/m² (12-level typhoon resistant) |
| Seismic Grade | Grade 7-9 | |
| Equipment Load | Max 50kg (sign + LED module) | |
| Functional Config | Auxiliary Facilities | Maintenance ladder, equipment cabinet, lightning rod, waterproof junction box |
| Electrical Interface | Pre-reserved cable channels, power/control signal ports | |
| Optional Features | Light/time control, solar power module | |
| Installation & Warranty | Installation | Flange foundation anchoring |
| Warranty | 1-3 years (lifetime for structure) |

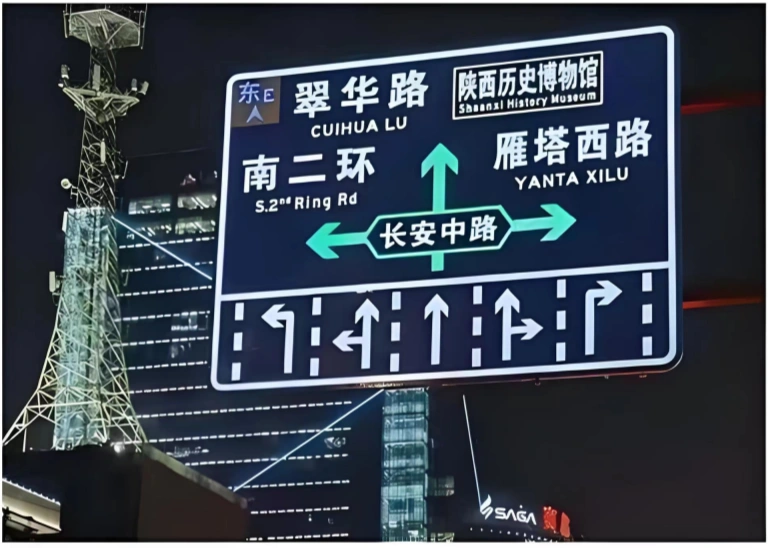

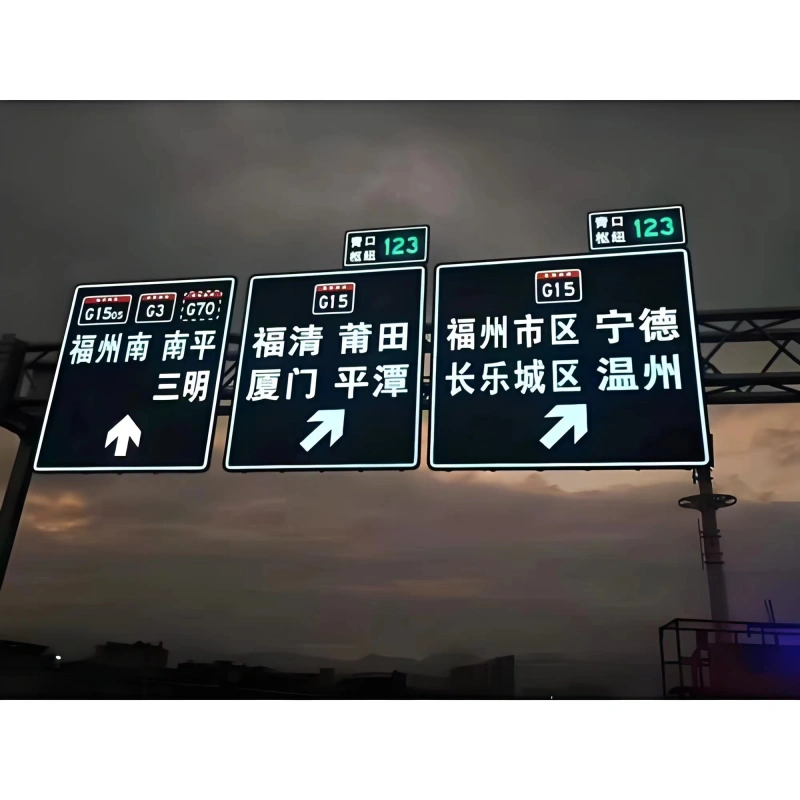

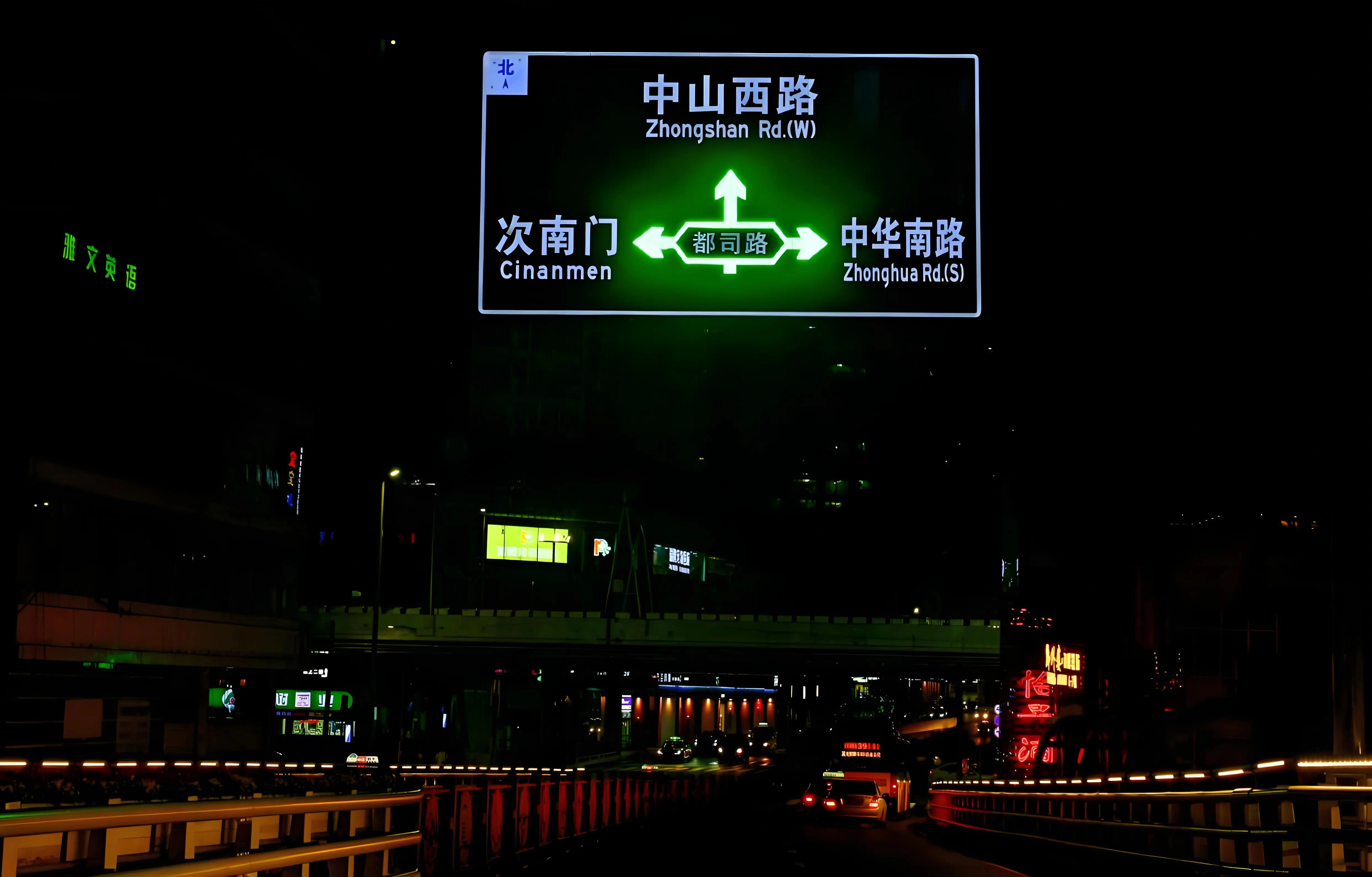

Our LED traffic sign poles are engineered to maximize visibility and durability:
Active Illumination Technology: Equipped with high-brightness SMD/COB LEDs (IP65 rated), our signs offer ≥300cd/m² brightness and a nighttime visibility range of 500m+, eliminating blind spots in poor weather or dark environments.
Durable Structural Design: Made from Q235B/Q355B hot-dip galvanized steel, the poles feature 20–30 years of corrosion resistance and 12-level wind resistance, ensuring stability in typhoons and harsh coastal conditions.
Smart Control Options: Support for light/time control and solar power integration, reducing energy consumption while enabling automatic brightness adjustment based on ambient light.
Global Compatibility: Flexible voltage options (DC 12V/24V or AC 220V) and customizable dimensions (height 4–8m, arm length 1–2m) to meet project requirements worldwide.
Upgrade your roadway signage with Kototerk’s LED illuminated poles—delivering safer, clearer guidance for drivers day and night. Contact us for a custom solution and free quote today.
